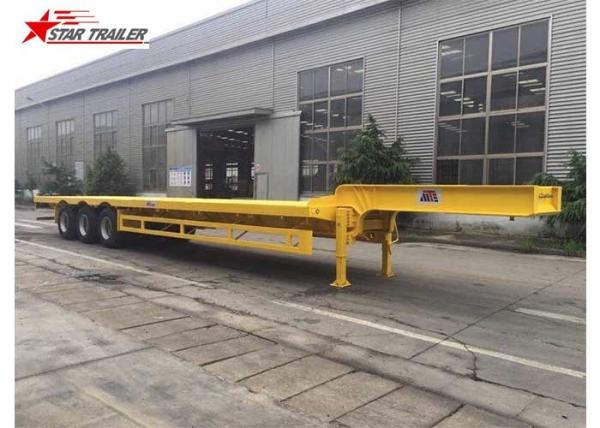

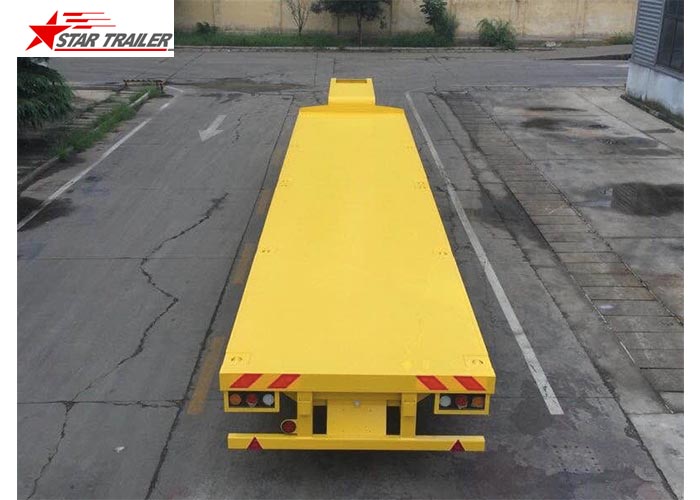

3 Axles Front Load Trailer High Strength Steel Material For Cargo Transportation

    Buy cheap 3 Axles Front Load Trailer High Strength Steel Material For Cargo Transportation from wholesalers

    Buy cheap 3 Axles Front Load Trailer High Strength Steel Material For Cargo Transportation from wholesalers
    • Buy cheap 3 Axles Front Load Trailer High Strength Steel Material For Cargo Transportation from wholesalers
    • Buy cheap 3 Axles Front Load Trailer High Strength Steel Material For Cargo Transportation from wholesalers

    3 Axles Front Load Trailer High Strength Steel Material For Cargo Transportation

    Ask Lasest Price
    Brand Name : Star Trailer
    Model Number : Type ST9680TJZ
    Certification : CCC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 300 sets per month
    Delivery Time : 40 days after down payment received
    • Product Details
    • Company Profile

    3 Axles Front Load Trailer High Strength Steel Material For Cargo Transportation

    3 Axles Front Load Trailer High Strength Steel Material For Cargo Transportation
    Overview
    Quick Details
    Use:Terminal Trailer Type:Semi-Trailer Material:Q345B
    Certification:CCC Size: Buy's request Brand Name:Star Trailer
    Max Payload:30-200T Place of Origin:Shandong, China (Mainland)
    Function:Transport 20/40ft container and Heavy Duty Equipment
    Axle:13T 14T 16T 18T BPW FUWA Suspension:Mechanical Suspension/Air suspension
    Landing Gear:JOST C200 two speed telescopic manual landing gear Tire:11r20 12r22.5 315 385
    King pin:2"(50mm)or3.5"(90mm) JOST Color:Customers Optional
    Production time:30 workdays
    Supply Ability
    Supply Ability:
    300 Set/Sets per Month
    Packaging & Delivery
    Packaging Details
    In nude,paiting wax before deliver to port
    1. by container(40ftHQ/40ft FR)
    2. by bulk ship/RORO ship
    Port
    Any port in china
    Product Introduction:

    The terminal trailer is designed and manufactured for transporting lx20’,2x20’,l x40’and lx45’ISO containers within container terminal.

    Contain3 Axles Terminal Trailerer Cargo Transportation Low Bed Semi Trailer

    Vehicle UseStevedoring and transporting of cargo container,sea port transportation, dangerous cargo container transportation
    Dimensions7200*2480*1680mm
    Loading Capacity25T~60T according to your requestment
    FloorMaterial Q345B, Thickness 3mm,4mm,6mm diamond steel plate
    Main BeamQ345B/T700/BS960 Strong Main Beam,
    Height 500mm,
    Upper Thickness 14mm ~ 20mm,
    Middle Thickness 6mm ~ 12mm
    Down Thickness 16mm ~ 22mm
    Axle Weight Load13T/16T/20T
    Axle BrandBPW / FUWA / Shandong local axle
    Suspension SystemMechanical suspension: Germany Type / America Type
    Air suspension: China brand / BPW brand or according to request
    Wheel Rim8.25*22.5/9.00*22.5
    Zhengxing brand
    Tire11.00R20, 12.00R20,12R22.5, 385/65R22.5
    Triangle, Chengshan, Doublestar, Linglong
    King PinJOST 2.0 inch (50mm)/3.5 inch (90mm)
    Landing GearJOST / FUWA 28T or according to your request
    Twist Locks4, 8, 12pieces (Lifting type or Twist Screw type), optional
    Brake SystemWABCO Valve with big chamber
    LightsTurning Light, Side Marker Light, Tail Light
    Voltage24V
    Receptacle7 ways (7 wire harness)
    Tool BoxCustomer optional
    Spare Tire CarriersCustomer optional
    PaintingCommon China made Paint / Polyurethane paint, Color optional
    CustomizationAccording to your request
    Packing1.Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;
    2. Cut the rear part which can load two sets in one 40ft container ;
    3. Keep the trailer original but load two sets in one 45ft container .
    Delivery Time15~25 days after deposit received.

    Product Description

    Material:
    High tensile low alloy steel with 550 MPa yield strength is used for fabricating H-beam and 350 MPa steel material for other fabricated parts.
    CIS: CHINA Industrial Standard

    Product Details:

    Product Accessories:


    Our customers

    FAQ:
    1.Can I have sample of this type trailer to test the quality?
    Of course yes, my friend and our MOQ is 1 unit.
    2. What's the delivery time and can you lower the price?
    It depends on the quantity. Usually it is within 40 days after the receipt of deposit. And my friend, the moer units ,the lower price..
    3. Can I customize the trailer?
    Yes, the design will be made according to your suggestion.
    4. What's the payment terms?
    30% by T/T as deposite and balance by T/T before delivery.,or by L/C at sight .
    5. How do you ensure its quality?
    There will be a warranty given to you ,to provide you a good after-sade-support.
