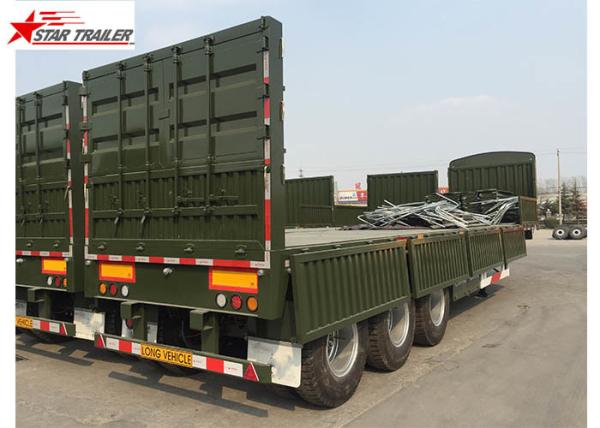

3 Axles Gooseneck Side Wall Semi Trailer Mechanical Suspension / Air Suspension

    Buy cheap 3 Axles Gooseneck Side Wall Semi Trailer Mechanical Suspension / Air Suspension from wholesalers

    Buy cheap 3 Axles Gooseneck Side Wall Semi Trailer Mechanical Suspension / Air Suspension from wholesalers
    • Buy cheap 3 Axles Gooseneck Side Wall Semi Trailer Mechanical Suspension / Air Suspension from wholesalers
    • Buy cheap 3 Axles Gooseneck Side Wall Semi Trailer Mechanical Suspension / Air Suspension from wholesalers
    • Buy cheap 3 Axles Gooseneck Side Wall Semi Trailer Mechanical Suspension / Air Suspension from wholesalers
    • Buy cheap 3 Axles Gooseneck Side Wall Semi Trailer Mechanical Suspension / Air Suspension from wholesalers

    3 Axles Gooseneck Side Wall Semi Trailer Mechanical Suspension / Air Suspension

    Ask Lasest Price
    Brand Name : Star Trailer
    Model Number : SW-004
    Certification : ISO/CCC
    Price : Negotiable
    Payment Terms : L/C, D/A, T/T
    Supply Ability : 300 units per month
    Delivery Time : 40 days after receiving your payment
    • Product Details
    • Company Profile

    3 Axles Gooseneck Side Wall Semi Trailer Mechanical Suspension / Air Suspension

    3 Axles Gooseneck Side Wall Semi Trailer Mechanical Suspension / Air Suspension
    Overview
    Quick Details

    Use:Truck Trailer Type:Semi-Trailer Material:Steel

    Certification: ISO CCC Size:12500*2500*1550mm OEM No.:Star Trailer VEHICLE

    Max Payload:80T Place of Origin:Shandong, China (Mainland)

    Brand Name:StarTrailer Product name:60tons 40ft Flatbed Side Wall Semi-trailer

    Function:Transport 20/40ft container and Heavy Duty Cargo

    Axle:13T 14T 16T 18T BPW FUWA QUEST

    Suspension:Mechanical Suspension/Air suspension

    Landing Gear:JOST Tire:11.00r20 12r22.5 315 385

    King pin:2"(50mm)or3.5"(90mm) JOST

    Color:Customers Optional Production time:40 days after receive workdays

    Packaging & Delivery

    Selling Units:Single item

    Single package size:1250X250X155 cm

    Single gross weight:7000.0 kg

    Package Type:In nude 2 units side wall semi trailer canbe packed into 1*40ft HQ container

    Lead Time :

    Quantity(Set)1 - 10>10
    Est. Time(day)40To be negotiated
    Product Introduction:

    Our StarTrailer VEHICLE provide the flat bed trailer can be used to transport containers ,bulk cargo and other goods , and we also can according to your requirements to make this trailer.StarTrailer production the flatbed trailer all configurations and accessories used domestic and aboard famous brand. Our main beam material use Q345B,it has high-strength and strong stiffness features.other type flatbed trailer , like extendable flatbed trailer , flatbed trailer for transporting logs , and flatbed trailer with side wall.

    Priduction Parameters

    Items3 Axles Side Wall Semi Trailer
    Loading Capacity40-80 tons
    Axle3/4 pieces, 13T FUWA/BPW/QUEST axle
    Tyre12/16 pieces, 12.00R20
    Dimensions(LxWxH)12500 -17000mm x 2500 x 1550mm
    Tare weight7TONS
    Axle spacing1310mm
    Rims8.5-20, 9.0-20
    Suspension SystemLeaf spring suspension / air suspension
    Brake SystemDual line pneumatic brake system with WABCO emergency relay valve
    Main BeamHeight 500mm Q345 carbon steel
    Chassisupper 20mm, lower 20mm. Mid web 12mm
    Side wall height600mm standard,600-1500mm available
    Twist locks12 units,THT brand
    Kingpin2’ or 3.5’ interchangeable,JOST brand
    Landing Gear28 Tons , Two speed manual operation
    Electrical System1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
    Lights and ReflectorsRear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
    PaintingShot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available
    Tool BoxOne tool box with a set of standard trailer tools
    Spare Tyre CarrierOne piece or two pieces
    High Quality 60tons 40ft Flatbed 3 Axles Drop Side Wall Semi Trailer For Truck


    PRE-SALES SERVICES

    We will have an in-depth conversation first when you reach out to us, this allows you to clarify your goals and vision. We will then determine how we can best accommodate your needs and send you specs, drawings and quotation to get your feedback. After everything is confirmed, we will move on to the final production.

    • Providing professional technical solutions with drawing.
    • Communicating with customers, analyze their needs.
    • Offering customer quote in EXW, FOB, CFR, DAF or CIF .
    FOLLOW-UP

    From the date of signing of the purchasing contract to the completion of the final product, we will follow-up on the progress at different stages:

    • Providing drawings for final confirmation.
    • Updating customers on manufacturing progress.
    • Offering photos, technical data, and necessary documents before shipping.

    DELIVERY

    For the entire delivery process, we will arrange everything from ship booking customs clearance, etc. We have lots of experiences in transporting different kinds of semi-trailers, you can always rely on us in delivering your goods in the most cost-effective and timely manner.

    • We have a long-term partnership with our forwarders, we can provide accurate shipping date and competitive shipping rates.
    • We can book appropriate cargo space and choose the best shipping method for you, whether through the container, roll-on-roll-off ship, open top container or bulk cargo carrier.
    • We can make an appointment for product inspection and prepare necessary documents for customs clearance.
    • We will track delivery status until you receive the cargo.
    AFTER-SALES SERVICES

    All products we made are held to the highest standard. Rarely do hear any complaint from our customer. But just in case you encounter any issues, you can always rely on our after-sales services. We will go to great lengths to ensure you are free from defects in material and workmanship.

    You will enjoy 5-year warranty on the mainframe and 1-year warranty on the OEM parts. Within the warranty period, if there is a defect in your purchased product, we will provide free technical support and spare parts support. Our engineers will also offer their professional advice to help you resolve all issues. After the warranty expires, you will still enjoy lifetime support.

    SPARE PARTS SERVICES
    We will send free spare parts along with the trailers when we ship them. If you still need more, we can provide a list of spare parts for you to choose, you can purchase them when you need them.
