Hydraulic Semi Low Loader Trailer , Reinforced Lowboy Heavy Equipment Trailers

    Buy cheap Hydraulic Semi Low Loader Trailer , Reinforced Lowboy Heavy Equipment Trailers from wholesalers

    Buy cheap Hydraulic Semi Low Loader Trailer , Reinforced Lowboy Heavy Equipment Trailers from wholesalers
    • Buy cheap Hydraulic Semi Low Loader Trailer , Reinforced Lowboy Heavy Equipment Trailers from wholesalers
    • Buy cheap Hydraulic Semi Low Loader Trailer , Reinforced Lowboy Heavy Equipment Trailers from wholesalers
    • Buy cheap Hydraulic Semi Low Loader Trailer , Reinforced Lowboy Heavy Equipment Trailers from wholesalers
    • Buy cheap Hydraulic Semi Low Loader Trailer , Reinforced Lowboy Heavy Equipment Trailers from wholesalers

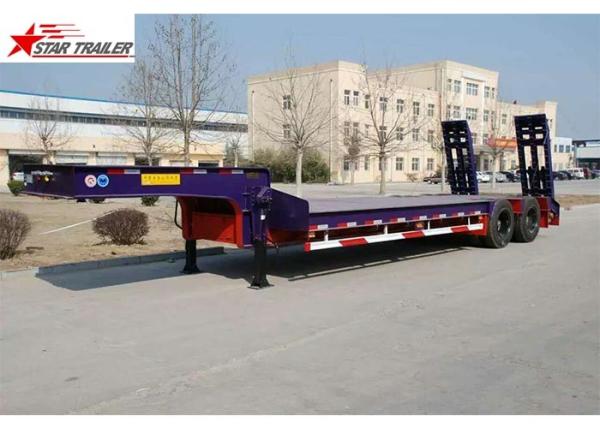

    Hydraulic Semi Low Loader Trailer , Reinforced Lowboy Heavy Equipment Trailers

    Ask Lasest Price
    Brand Name : Startrailer
    Model Number : LB1-006
    Certification : CCC、ISO
    Price : USD15,000~USD35,000
    Payment Terms : T/T,
    Supply Ability : 30 Units per month
    Delivery Time : 40 days after down payment received
    • Product Details
    • Company Profile

    Hydraulic Semi Low Loader Trailer , Reinforced Lowboy Heavy Equipment Trailers

    Click this link to talk to us:
    https://api.whatsapp.com/send?phone=8613864856071


    Overview


    Quick Details

    Purpose: Logistics between cities Type: Semi-Trailer, Truck Trailer Material: Carbon Steel Certification: ISO CCC
    Size: Buyer's Request Brand: Star Trailer

    Max Payload:60ton Loading weight::40ton to100ton

    Axle:: FUWA or BPW Tire::1100R20/12R22.5/315/80R22.5 Place of Origin: Shandong Province, China

    Landing Gear: JOST brand 2.0(50mm) or 3.5 inches(90mm) bolts type or Welding type

    Suspension: Leaf spring suspension or airbag suspension

    Floor:3mm/4mm/5mm diamond plate

    Ladder: Manual or Hydraulic type

    Side Guard: According to customer's requirement


    Product Capacity
    30 units per Month
    Specification

    Hydraulic Semi Low Loader Trailer, Reinforced Lowboy Heavy Equipment Trailers

    Low bed semi-trailer two axles
    General
    Overall dimension(MM)15450*3400*1570
    Working Plate12230*3400*950
    FunctionTransport heavy machine
    Loading weight (KG)60,000
    Tare weight(KG)12500
    Wheelbase(MM)11830mm+1220mm
    Running gear
    AxleFuwa, 13T, two sets
    Suspension systemLeaf spring suspension
    Leaf spring10/10 Width:90mm Thickness: 13mm
    Tire8.25R15LT, 16 pieces
    Brake systemWabco relay valve
    Brake air chamberFour big double air chamber
    Under Frame
    Main beam(MM)

    Q345B, automatic submerged arc welded

    Top plate thickness: 20mm, (Standard design)

    Web plate thickness: 12mm, (Standard design)

    Bottom thickness: 20mm, (Standard design)

    Platform plate4mm diamond plate
    Kingpin50# (2 inches), or 90# (3.5 inches), 1 Piece, Jost brand
    LaddersSpring ladders or Hydraulic ladders
    Landing gearCapacity 28 ton, Static load 60 ton, two speed, One side operation
    Accessoriestoolbox,(1.4-1.6)m*0.5m*0.5m with One set
    Spare carrierStandard 1pc
    Electrical& others
    Electric system1.Voltage: 24V 2. Receptacle: 7 ways( 7 wire harness)
    Tail lamp with turn signal, brake light& reflector and side lamp
    PackingNude, polish with wax before shipping
    ShippingTransfer to any port in China and carry by container ship.

    Product Pictures:

    Manufacturing accessories:

    Lowbed semi-trailers are commonly used for transporting construction pieces of machinery such as bulldozers, excavators and overweight equipment such as transformer, generator, etc.



    Workshop:

    Production packaging:

    Our Customers:


    Our advantages:

    1.High-grade steel for semi-trailer

    The steel we use is high-grade steel, and it contains niobium and 0.98‰ of titanium, which keeps the chassis very strong with high torsional stiffness and low dead weight. The main beams are the strongest in the market, allowing for more load capacity. We are proud to offer every customer 5-year warranty on the mainframe.

    2.Designed for optimal load distribution

    Our trailer is designed for optimal load distribution. Instead of two web reinforcement structure design, which is commonly used by other Chinese factories, we adopt the structure of width plate and stiffened plate reinforcement. As a result, our trailer has excellent torsional stiffness and is exceptionally stable when loaded.

    3.Weld quality

    To ensure the weld quality in the critical parts of the trailer, we have introduced advanced welding

    the machine in our production line, including submerged arc welding machine, welding robots, and kingpin welding machine, etc.


    Our Services

    PRE-SALES SERVICES
    We will have an in-depth conversation first when you reach out to us; this allows you to clarify your goals and vision. We will then determine how we can best accommodate your needs and send you specs,

    drawings and quotation to get your feedback. After everything is confirmed, we will move on to the final production. We are providing professional technical solutions withdrawing. Communicating with customers, analyse their needs. Offering customer quote in EXW, FOB, CFR, DAF or CIF


    FAQ
    1. How about the quality of your products? Can I trust you?

    We have sixteen years of production experience. Guarantee Quality and Delivery! Since our establishment, we have considered "products quality first" as our principle.

    2. How do you transport semi-trailers?

    We transport the semi-trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.

    3. What are your terms of payment?

    T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

    4. How about your delivery time?

    Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time

    depends on the items and the quantity of your order.
