    Hydraulic Wing Van Platform Semi Trailer Container Delivery With Tail Retractable

    Ask Lasest Price
    Brand Name : Star Trailer
    Model Number : SW-016
    Certification : ISO/CCC
    Price : Negotiable
    Payment Terms : L/C, D/A, T/T
    Supply Ability : 300 units per month
    Delivery Time : 40 days after receiving your payment
    • Product Details
    • Company Profile

    Hydraulic Wing Van Platform Semi Trailer Container Delivery With Tail Retractable

    Hydraulic Wing Van Platform Semi Trailer Container Delivery With Tail Retractable
    Overview
    Quick Details

    Use:Truck Trailer Type:Semi-Trailer Material:Steel

    Certification:CCC/ISO Size:12400*2500*3650 OEM No.:Optional

    Max Payload:50T Brand Name:StarTrailer Model Number:Shuyue

    Axle:FUWA 13 tons Brake:Wabco Floor thickness:3mmSupply Ability
    Supply Ability: 300 Unit/Units per Month 2 or 3 units packaged together to reduce the shipment cost.
    Packaging & Delivery

    Packaging Details

    Nude

    Port: China Port

    Lead Time : Around 40 days after payment

    Items

    Side wall semi trailer 50T

    Side wall semi trailer QUEST80SW

    Loading Capacity

    40-50 tons

    60-80 tons

    Axle

    3 pieces, 13T FUWA/BPW axle

    4 pieces, 13T FUWA/BPW axle

    Tyre

    12 pieces, 12R22.5

    16 pieces, 12R22.5

    Dimensions(LxWxH)

    12500 to 16000mm x 3000 x 1550mm

    Tare weight

    6 tons to 9 tons

    Axle spacing

    1310mm

    Rims

    8.5-20, 9.0-20

    Suspension System

    Leaf spring suspension / air suspension

    Brake System

    Dual line pneumatic brake system with WABCO emergency relay valve

    Main Beam

    Height 500mm Q345

    Chassis

    upper 12mm, lower 14mm. Mid web 10mm

    Container Twist Locks

    12 nos, THT

    Side Wall

    600mm height; 800mm,1000mm optional

    Kingpin

    2’ or 3.5’ interchangeable

    Landing Gear

    28 Tons , Two speed manual operation

    Electrical System

    1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard

    Lights and Reflectors

    Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

    Painting

    Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available

    Tool Box

    One tool box with a set of standard trailer tools

    Spare Tyre Carrier

    One piece or two pieces

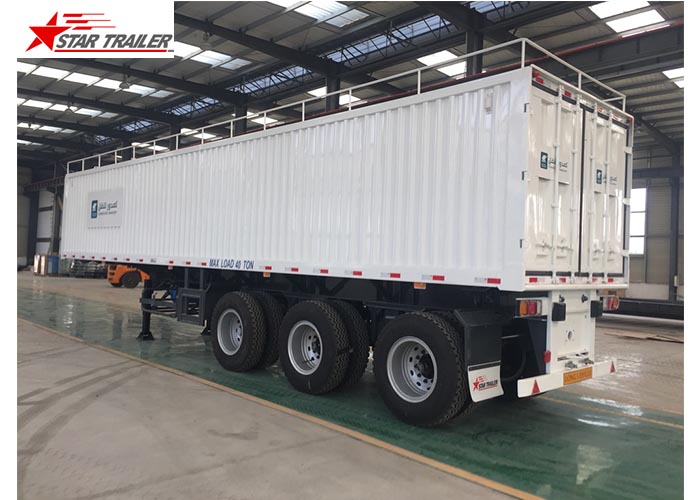

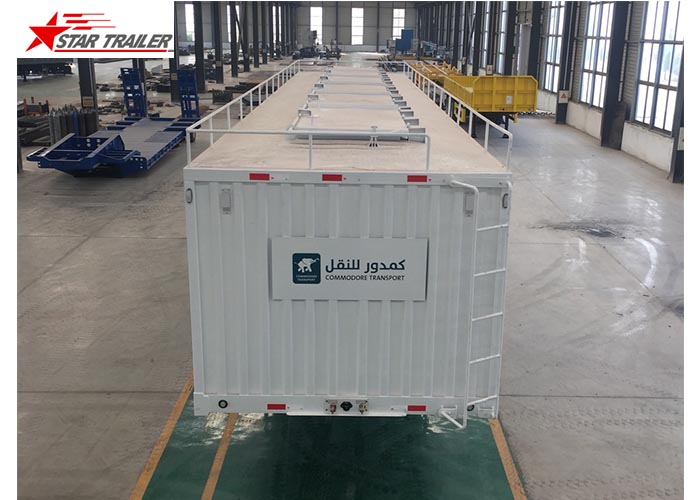

    Product Display:

    3 Axles 30-60 Tons Hydraulic Wing Van Flatform Container Semi Trailer

    Accessories:

    Our advantages:

    1.Competitive Price

    We work as the leading manufacture of Semi Trailers and are treated with best dealership prices

    from leading steel and trailer parts manufacturer every year. From numerous comparison and

    feedback from clients, our price is more competitive.

    2.Quick Response

    Our team is consisted of a group of diligent and enterprising people, working 24/7 to respond

    client inquiries and question all the time. Most problems can be solved within 12 hours.

    3.Fast Delivery

    Powerful production ability and variety of resources shorten delivery time.

    10 days for chassis trailer.

    15 days for low bed trailer.

    20 days for cement trailer.

    25 days for fuel tank trailer.

    4.Price with long valid time

    We are a tender and friendly supplier,never greedy on windfall profit. Basically, our price remains

    stable through the year ,unless exchange rate changes over 3%.
