    13 Meters 3 Axles Commercial Flatbed Trailer With Dual Line Brake System

    Ask Lasest Price
    Brand Name : Star Trailer
    Model Number : FT2-005
    Certification : ISO/CCC
    Price : Negotiable
    Payment Terms : L/C, T/T,
    Supply Ability : 300 Units per month
    Delivery Time : 40 days after down payment received
    • Product Details
    • Company Profile

    13 Meters 3 Axles Commercial Flatbed Trailer With Dual Line Brake System

    Overview

    Quick Details

    Use:Truck Trailer Type:Semi-Trailer Material:Steel

    Certification:ISO/CCC Size:13165x2550x1500mm OEM No.:low bed semi trailer

    Max Payload:80T Place of Origin:Shandong, China (Mainland)

    Brand Name:Star Trailer Axle:FUWA or BPW Tire:1100R20/12R22.5/315/80R22

    Suspension:Leaf Spring Suspension Landing Gear:JOST brand 2.0(50mm) or 3.5

    King pin:50# or 90# Color:Customers' Optional

    Function:Transport excavator and machine

    Delivery time:40 days after advance received Color:Any color

    Supply Abilty
    300 Set/Sets per Month

    Product Overviews:

    13 Meters 3 Axles Heavy Duty 53 Foot Aluminum Flatbed Semi Trailer


    Manufacturing accessories:

    Flatbed semi-trailers are built to transport container and loose cargos such as steel bar, metal coil, agriculture goods, and other items which can be transported with pallet and bags.

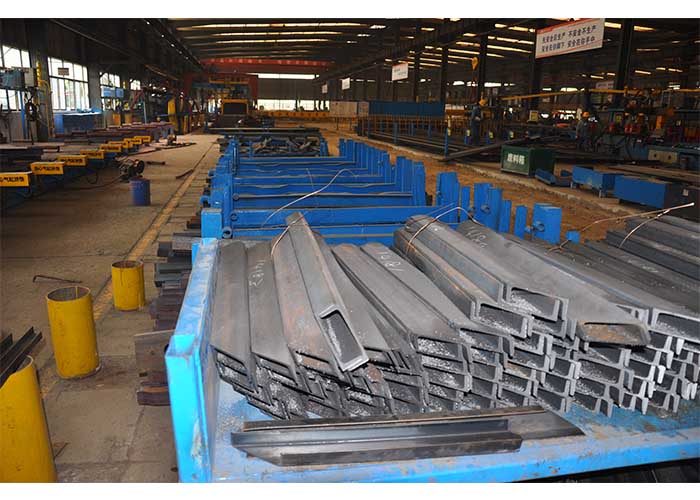

    Workshop:

    Product Description:

    13 Meters 3 Axles Heavy Duty 53 Foot Aluminum Flatbed Semi Trailer manufacturers technical parameter:


    Weight:
    Tare Weight8000kg--14000kg
    Loading Capacity30T--90T
    Axle Weight Load13T-16T
    Specification:
    Axle number2- 4
    Axle BrandFuwa/BPW
    SuspensionCommon mechanical Or Air suspension
    King Pin2" or 3.5" traction pin
    Dimensions (LxWxH)12400-18000×2500-3200×1500-1550mm
    Support legs28T
    Wheel Rim

    8.5-20,9.0-20,8.28-22.5,9.0-22.5 steel wheel rim /

    optional upon choice


    Wheelbase7180/6680/6260+1310+1310mm
    Steel Spring10-13 pieces per axle
    Twist lock12 sets of ISO twist lock for 1*20ft,2*20ft,1*40ft container
    Landing GearManual operating, Heavy duty landing gear (Brand Optional upon chioce)
    Floor3-5 Diamond steel plate
    Accessories1 Set standard tool box
    LightTail lamp with turn signal, brake light & reflector, side lamp etc.
    Painting1coat of anticorrosive prime, twice coats of final paint
    Tire:
    Tire spe.12R22.5 Vacunnm tire/11.00R20
    Number of Tire8 or 12 or 16 pieces
    Spare Tire Carriers2 pieces
    Frame:
    Main beam

    The height of the beam is500-550mm;

    Upper plate:14-18mm;Mown plate is 16-20mm;Middle plate is 8-12mm.

    Brake:
    Brake brandOptional upon choice
    Brake ChamberSix big chamber( Brand Optional upon choice )
    Brake system

    Dual Line Brake system (ABS Optional upon choice)


    Production packaging:

    Our Customers:


    Our advantages:

    1.High-grade steel for semi-trailer

    The steel we use is high-grade steel, it contains niobium and 0.98‰ of titanium, which keep the chassis very strong with great torsional stiffness and a low dead weight. The main beams are the strongest in the market, allowing for more load capacity. We are proud to offer every customer 5-year warranty on the mainframe.

    2.Designed for optimial load distribution


    Our trailer are designed for optimal load distribution. Instead of two web reinforcement structure design which is commonly use by other Chinese factories, we adopt the structure of width plate and stiffened plate reinforcement. As a result, our trailer has great torsional stiffness and is extremely stable when loaded.


    3.Weld quality


    In order to ensure the weld quality in the key parts of the trailer, we have introduced advanced welding machine in our production line, including submerged arc welding machine, welding robots, and kingpin welding machine, etc.


    FAQ

    1.Does your company is a factory or trade company?

    We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.


    2.Whats the qualify assurance we provided and how do we control quality?

    1. Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.


    2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.


    3. What’s your MOQ?

    One unit trailer or truck.


    4. How do you transport the semi trailers and trucks?

    We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.

    bulk or container.


    5. Can you satisfy my special requirement?
    Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
