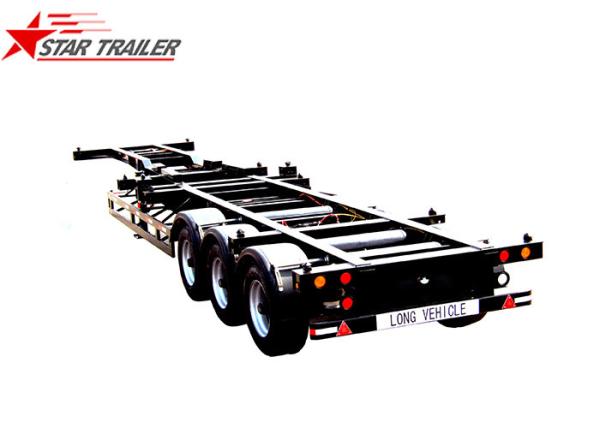

40ft Skeletal 3 Axles Container Semi Trailer For Transport Empty
Wharf Containers
Dimension:
Length: Approx 12,538 mm
Width: Approx 2,260 mm
Height: Approx 1,290mm
King Pin Location: Approx 1000 mm from the front face of the front bolster
Axle spacer: Approx 7,200mm + 1,310mm + 1,310mm
Landing Gear location: Approx 2,489mm behind the king pin location
(The above dimension will be adjusted according to the tractor specification)
Weight:
Tare Weight (Tolerance: 0~4%): Approx 7,000 kg
Max. Payload: 30,000kg GVWR: Approx 37.000kg
Steel Structure:
Main Beams: high tensile steel to fabricated “H” beam, Steel: Q345.
Bolster: Front and rear bolster are of hot roller “C” type channel steel.
Steel: Q345.
Cross Member: There are hot roller “C” type square channel steel cross member
Material: High strength low alloy steel Q345 with 350 Map yield strength is
used for welded I-beam and Q235 in other fabricated parts.
OEM Parts Configuration:
King Pin: SAE standard 2” (exchangeable) bolting king pin, Supplier: JOST
Made in China.
Twist Locks: Four (4) twist retractable locks.
Landing Gear: 2 speed road side winding with sand shoe. Static Load: 50 ton.
Lift Load: 24 ton. Type: JOST D200T Made in China.
Suspension: Mechanical suspension with 7 pieces leaf springs. Famous Brand:
FUWA, Baoming etc Made in China.
Axles: Axle with 13 tons capacity. Famous Brand: CIMC, York, BPW, SAF etc
Made in China. Option is made by the factory.
Rims: 11.75×22.5, 10 Holes ISO, 6 pieces.
Tires: 385/65R22.5, 6 pieces; China Famous Brand: Linglong, Triangle,
Jinguan etc. Option is made by the factory.
Brake System: Dual or single pneumatic brake system; WABCO relay emergency
valve, none ABS brake system.
Brake Chamber: 30/30 type on the rear axle, 30 types on the front axle
Electrical System: 24 volt electrical system with 7-pin connector and modular wiring
harness:
Others:
Spare Tire Carrier: Equipped two, without tire.
Side Guard: Side Protection.
Reflector: 2-Nos triangle shaped Red Reflectors at Rear.10 pieces Reflectors
strip (Conspicuity tape) each side.
Tool Box: Equipped one
Mudguards: PVC, 2 pieces.
Marking: Qingdao CIMC Special Vehicle Co., Ltd. standard, Technical data
plate including chassis no, dead weight, year of manufacturing etc.
to be fitted
Painting: The Color is made by customer’s requirement.
Drawing
This drawing is only for reference
