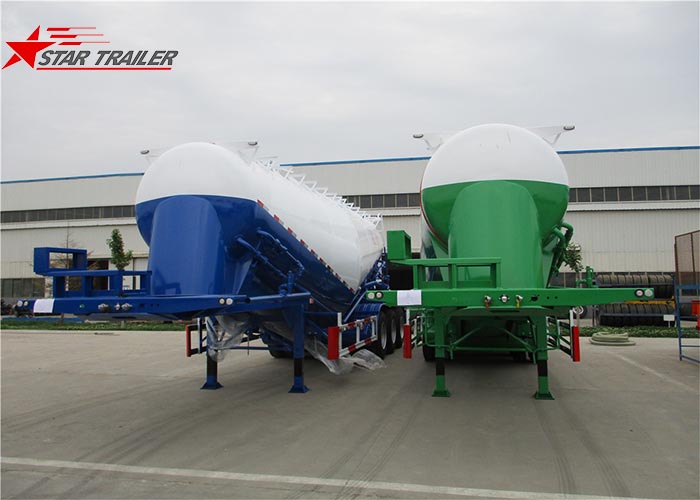

Structure:
– It is manufactured in 22 to 60 M3 volumes according to request
– Operating Pressure 2 BARS
– Test Pressure 3 BARS
– The body is ‘’Banana’’ type
– 4 mm-7 mm St 37 or St52 plate is used on semi-trailer body
Air Compressor:
– 3 head or 2 Head, a powered compressor with pistons and diesel
Deutz motor or Electrical motor
Bakuman brand
Unloading Valve:
– It is unloaded from 4” or 3” spherical valve by the help of
vibration hoses floored in the bottom.
Security Valve:
– It limits the pressure to 2 bars in the tank by 2 pcs of valves
Chassis:
Monoblock chassis is manufactured from St quality plate by using
robot welding technology
Axles:
Fuwa,/Bpw 3 x 9,12,14,16 Ton axles brake drum or disc
There are brake shoes and heavy brake levers suitable for TSE norms
air-suspension-axle-set
mechanical-suspension-axle-setbogie-suspension-axle-set
Suspensions ;
It is supplied 6 pcs of air cushion with Z leaf spring or
mechanical leaf spring suspension with 12 mm x12 pcs of layer with
100 mm width
Brake System ;
Wabco brand ABS or EBS braking system will be used.
Brake Chambers ;
1 Axles with T 30/30 emergency brake chamber,2 axles with T 30
service brake chambers
Electrical system ;
Hella, Aspöck, Sa-Ba or Sertplas brand 2×7 pin sockets – 24V,
lights accord to standard in SAE rear stop lamps, side marker
lamps, brake safety warning lamps and signal light fitted at the
rear
2 tail & stop combined fires (red)
2 turn signal combined lamps (orange)
1 license lamp (white)
Tires;
385/65 R22,5 or 12 R22,5 or 13 R22,5 or 315/80 R22,5 Bridgestone,
Goodyear, Triangle, Michelin
Rims; 11.75 R22.5 Brand
Kingpin ;
Jost standards 2’’ or 3,5’’ kingpin detachable from below made by
SAE standards 8 bolt type. With E certificate.
Landing Gear ;
Jost Turkish brand front Jack feet are telescopic, parallel
working, double speed jointed with wide shoes static 50 tons,
dynamic 25 tons capacity
Painting ;
Before the painting trailer is sandblasted
ZincRich epoxy grey is used for first protecting.
1-2 Times of high-quality paints are applied on trailer protects
against humanity
Our customer selects the colour of the trailer according to RAL
codes
STANDARD ACCESSORIES
– 2 pieces of utility hole caps that have the single cover and
having durability for a test pressure
– 1 air pressure gauge
– Unloading air funnel hose system which provides liquidity
– 1 security valve set to 2.5 bars
– 1 spherical jet air valve that accelerates the unloading process
– 1 under lap toolbox (on body)
– 1 non-slip floor, walking platform
– 1 ladder (climbed from behind)
– 2 PVC pipes to carry unloading hoses
– Multi-piece plastic fenders that cover trailing axle tires
– 1 plate tool box
– Control Panel (Mob, air clock, access ramp lever)
– Plastic water tank
– Roller spare tire conveyor
– Mounting and mounting space
