Packaging Details
In nude,paiting wax before deliver to port
1. by container(40ftHQ/40ft FR)
2. by bulk ship/RORO ship
Port
Any port in china
Product Introduction:
The terminal trailer is designed and manufactured for transporting
lx20’,2x20’,l x40’and lx45’ISO containers within container
terminal.
More charactors of strong semi trailer you will concern :
1>Strong trailer frame was made from Q345B/Q550/Q690/HG60,The
advantages of Q550/Q690/HG60 are high strength, strong bearing
capacity and 2-3 times of other materials.
2>All cross beams are completely reinforced
3>Heavy duty type suspension:Mechanical, airbag, and rigid
suspension to meet your transportation demand.
4>Strong low bed trailer ramp,leaf spring type,folding hydraulic
type optional.
5> Two pieces spare tire carriers, water tank, fuel tank, etc,
are optional accessories which build modern transportation.

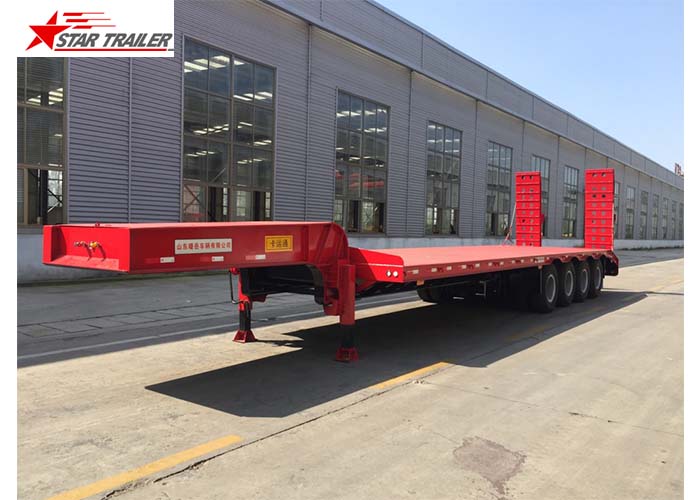

4 Axles 5 Axles 40ft 45ft Extendable Low Bed Semi Trailer
Function:Delivery for Excavator, Machinery, Road Roller,
Containers, Groceries
| Tare Weight | About 8.5-13T |
| Dimension | 12000mm-18000mm*2500mm-3500mm*3050mm Please indicate the working platform height and length. |
| Loading Capacity (T) | 30T-100T |
| Axle | 13 T/16T, FUWA /BPW Brand |
| Rim | 6.5-20/7.5-20/8.00-20/8.5-20 |
| Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
| Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main beam | Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is
8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel . |
| Side beam | 16mm -25mm channel steel ( Material is Q235steel ). |
| Ladder | Manual or Hydraulic type |
| Gooseneck | For choose |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand);
Two pieces of 45L air tanks |
| ABS | Optional |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
| Valve | WABCO valve |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire
spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of
anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Star Trailer brand lowbed semi trailer ,is made from the high
standard Q345 steel ,the frame bream is well welded by the
submerged-arc welding machine ,we also have DOUBLE VERTICAL PLATE
design for choose ,it's for carrying heavey machine up to 100tons
.the trailer is well polished by the shot blasting machine before
paint . For export ,we only use famous parts ,such as JOST brand
kingpin and Landing legs ,Germany WABCO brand brake
After 6 years of exploring the international market ,our car
-carrier low bed semi trailer dimensiis well known and accepted by
our customers from Afria,Midde east,South Asia,and South America
Favorable policies are provided for you to join us as the dealer
You are always welcomed to visit our company and factory for
business cooperation !!
Product Description

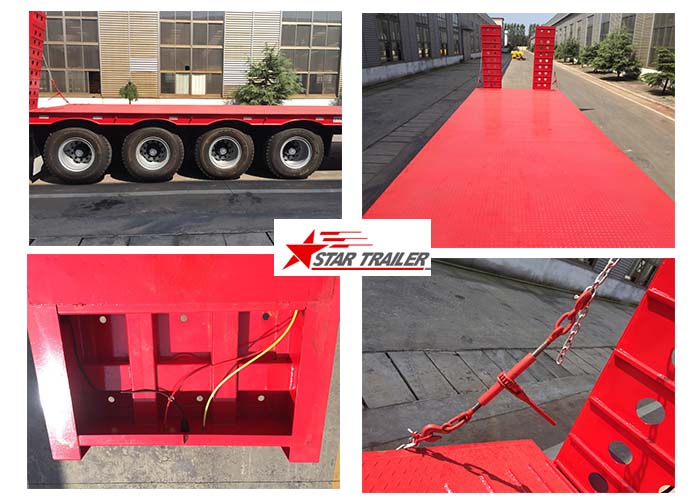

Product Accessories:
Our customers
FAQ:
1.Can I have sample of this type trailer to test the quality?
Of course yes, my friend and our MOQ is 1 unit.
2. What's the delivery time and can you lower the price?
It depends on the quantity. Usually it is within 40 days after the
receipt of deposit. And my friend,
the moer units ,the lower price..
3. Can I customize the trailer?
Yes, the design will be made according to your suggestion.
4. What's the payment terms?
30% by T/T as deposite and balance by T/T before delivery.,or by
L/C at sight .
5. How do you ensure its quality?
There will be a warranty given to you ,to provide you a good
after-sade-support.
