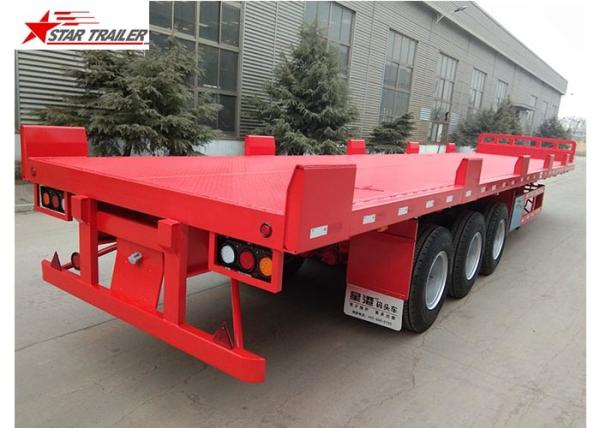

12 Wheels 13 Meters Platform Semi Trailer 3 Axles Low Alloy Steel Material

    Buy cheap 12 Wheels 13 Meters Platform Semi Trailer 3 Axles Low Alloy Steel Material from wholesalers

    Buy cheap 12 Wheels 13 Meters Platform Semi Trailer 3 Axles Low Alloy Steel Material from wholesalers
    • Buy cheap 12 Wheels 13 Meters Platform Semi Trailer 3 Axles Low Alloy Steel Material from wholesalers
    • Buy cheap 12 Wheels 13 Meters Platform Semi Trailer 3 Axles Low Alloy Steel Material from wholesalers
    • Buy cheap 12 Wheels 13 Meters Platform Semi Trailer 3 Axles Low Alloy Steel Material from wholesalers
    • Buy cheap 12 Wheels 13 Meters Platform Semi Trailer 3 Axles Low Alloy Steel Material from wholesalers

    12 Wheels 13 Meters Platform Semi Trailer 3 Axles Low Alloy Steel Material

    Ask Lasest Price
    Brand Name : Star Trailer
    Model Number : FT3-005
    Certification : ISO/CCC
    Price : Negotiable
    Payment Terms : L/C, T/T,
    Supply Ability : 300 Units per month
    Delivery Time : 40 days after down payment received
    • Product Details
    • Company Profile

    12 Wheels 13 Meters Platform Semi Trailer 3 Axles Low Alloy Steel Material

    Overview

    Quick Details

    Use:Truck Trailer Type:Semi-Trailer Material:Steel

    Certification:ISO/CCC Size:13165x2550x1500mm OEM No.:low bed semi trailer

    Max Payload:80T Place of Origin:Shandong, China (Mainland)

    Brand Name:Star Trailer Axle:FUWA or BPW Tire:1100R20/12R22.5/315/80R22

    Suspension:Leaf Spring Suspension Landing Gear:JOST brand 2.0(50mm) or 3.5

    King pin:50# or 90# Color:Customers' Optional

    Function:Transport excavator and machine

    Delivery time:40 days after advance received

    Supply Abilty

    300 Set/Sets per Month

    Product Overviews:

    12 Wheelers 13 Meters 3 Axles Heavy Duty Platform Semi Trailer

    The Star trailer flatbed trailers are built to transport container and loose cargos such as steel bar, metal coil, agriculture goods, and other items which can be transported with pallet and bags. Waterproof cover and rope ratchet are equipped for goods protection. Extendable flatbed trailer to be designed according to customer’s requirement. High-grade steel and DOT standard components are used to ensure the top quality of the trailer.


    Manufacturing accessories:
    We manufacture European-standard Semi-trailers. We pay great attention to a high quality standard in every detail, our products deliver more benefits, such as payload, driving safety and functionality



    Workshop:


    Product Description:

    12 Wheelers 13 Meters 3 Axles Heavy Duty Flatbed Semi Trailer

    Vehicle UseMainly used for medium and long-distance transport of large cargo & contaienr transportation
    Dimensions12500x2500x3500mm
    Loading Capacity50T
    Floor Thickness2mm
    Main BeamHeight 500mm
    Upper Thickness 8mm
    Middle Thickness 6mm
    Down Thickness 10mm
    Side Beam140mm Channel Steel
    Axle Weight Load13T
    Axle BrandFuwa brand, 3 axles
    Suspension SystemMechanical Suspension, Air Suspension, Bogie Suspension
    Wheel Rim8.25*22.5/9.00*22.5
    Zhengxing brand
    Tire11R22.5
    King PinJOST 2.0 inch (50mm)/3.5 inch (90mm)
    Landing Gear28T
    Twist Locks4, 8, 12pieces (Lifting type or Twist Screw type), optional
    Brake SystemWABCO Valve with big chamber
    ABSCustomer optional
    LightsTurning Light, Side Marker Light, Tail Light
    Voltage24V

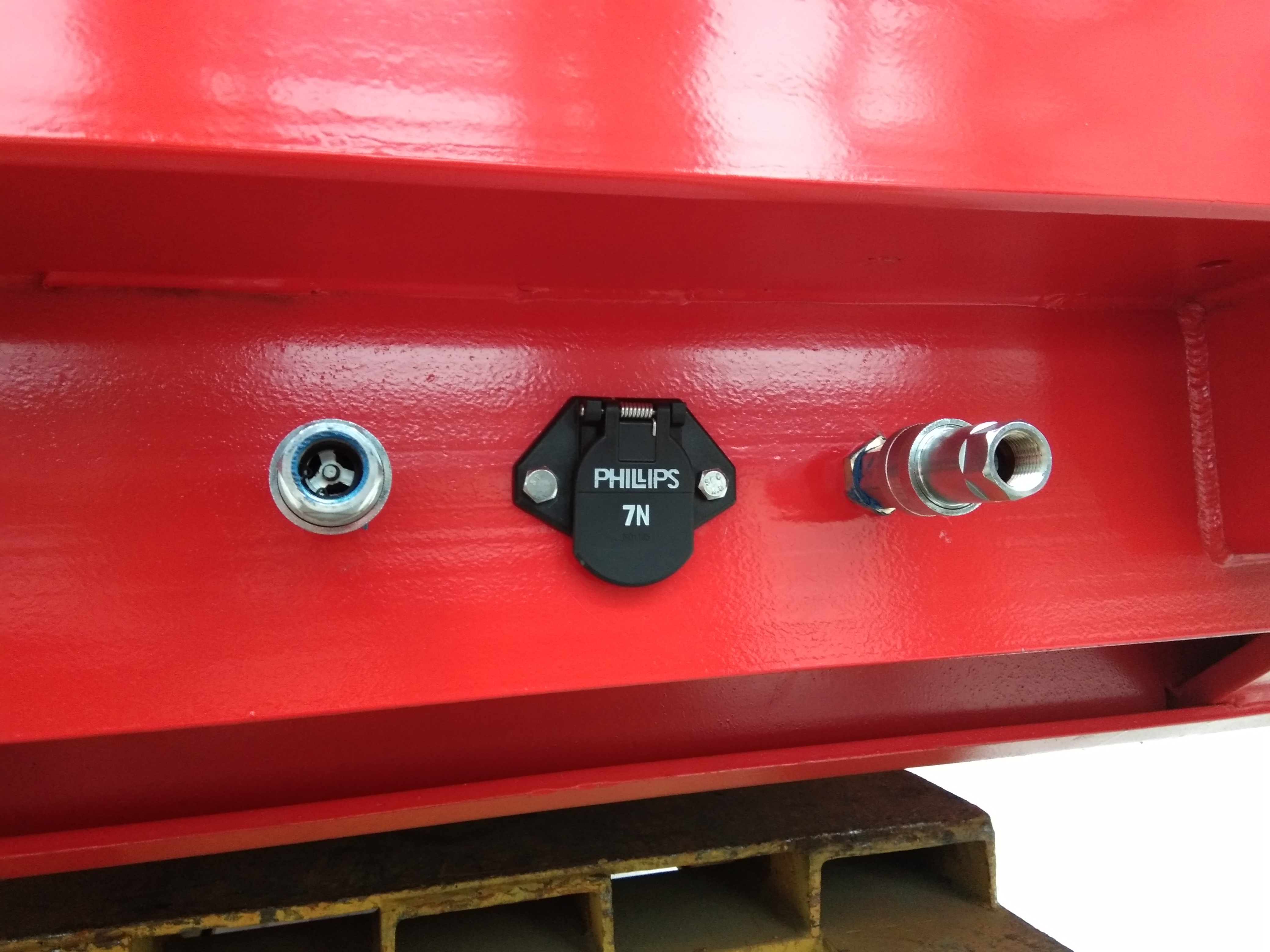

    Receptacle7 ways (7 wire harness)
    Tool BoxCustomer optional
    Spare Tire CarriersCustomer optional
    Painting ColorCommon China made Paint / Polyurethane paint, Color optional
    CustomizationAccording to your request
    Packing1.Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;
    2. Cut the rear part which can load two sets in one 40ft container ;
    3. Keep the trailer original but load two sets in one 45ft container .
    Delivery Time15~25 days after deposit received.

    Production packaging:

    Our Customers:

    Our advantages:

    1.High-grade steel for semi-trailer

    The steel we use is high-grade steel, it contains niobium and 0.98‰ of titanium, which keep the chassis very strong with great torsional stiffness and a low dead weight. The main beams are the strongest in the market, allowing for more load capacity. We are proud to offer every customer 5-year warranty on the mainframe.

    2.Designed for optimial load distribution

    Our trailer are designed for optimal load distribution. Instead of two web reinforcement structure design which is commonly use by other Chinese factories, we adopt the structure of width plate and stiffened plate reinforcement. As a result, our trailer has great torsional stiffness and is extremely stable when loaded.

    3.Weld quality

    In order to ensure the weld quality in the key parts of the trailer, we have introduced advanced welding machine in our production line, including submerged arc welding machine, welding robots, and kingpin welding machine, etc.
