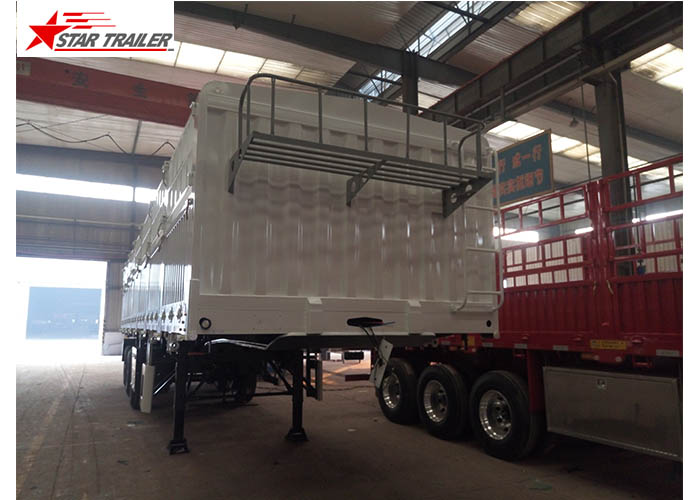

    60T Roof Opened Steel Dry Van Trailer , Dry Box Trailer With Tri Axles

    Ask Lasest Price
    Brand Name : Star Trailer
    Model Number : SW-006
    Certification : ISO/CCC
    Price : Negotiable
    Payment Terms : L/C, D/A, T/T
    Supply Ability : 300 units per month
    Delivery Time : 40 days after receiving your payment
    • Product Details
    • Company Profile

    60T Roof Opened Steel Dry Van Trailer , Dry Box Trailer With Tri Axles

    60T Roof Opened Steel Dry Van Trailer , Dry Box Trailer With Tri Axles
    Overview
    Quick Details
    Use:Car Trailer OEM No.:Accept OEM Max Payload:30-60T
    Place of Origin:Shandong, China (Mainland) Brand Name:Star Trailer
    Size:12980*2498*3860 Manufacture:Star Trailer

    Certificate:CCC Type:Truck/Cargo trailer

    Name:Star Trailer 3 Axles 12 Wheels Side Wall Semi Trailer For Truck

    Supply Ability

    Supply Ability:30000 Unit/Units per Year cargo truck trailer

    Packaging & Delivery

    Packaging Details: Nude Packing

    Port:Main Port of China

    Lead Time : 40 days after receiving your payment

    Product Description


    Features:1,Steel construction:All chassis adopts the high-tensile steel2,Running system:Axles and suspensions system are complied with International Standards;3,Brake system:Adopt the International brands;4,Electric system:China famous brands;5,Painting:zinc-rich primer and modified urethane topcoat as customers' choices.6,Harness: We adopt the rubber Wiring harness. Its advantages include waterproof, dustproof, anti-aging, safety more,etc.Specially there are some high intension clamps to fix the harness.7,The side beam is high tensile steel which strengthen more the Cargo platform.8,Double air chambers are adopted on all axles in order to brake the trailers safety and quickly.9,Lights include the rubber grommets in order to decrease the shaking and extend its using period.


    Specifications:


    Dimension and weight:
    External dimension(L*W*H)mm
    12980*2498*3860
    The rear axle location(mm)
    2040
    The king pin location(mm)
    1070
    Gross weight(kg)
    32950
    Tare weight(kg)
    7950
    Payload(kg)
    25000
    The fifth wheel load(kg)
    10450
    Wheel base(mm)
    7250+1310+1310
    Wheel track(mm)
    1830
    Leave angle °
    14 degree
    Running system
    Suspension system
    Leaf springs 7/7/7,8/8/8
    Axle
    13t axle of BPW,YORK or FUWA brand
    Tire:
    11.00-20/11.00R20/12.00R20
    Trail pin
    2'' (3.5'' is option)
    Chassis
    Main beam
    High-tensile steel
    Painting
    zinc-rich primer and modified urethane
    topcoat as customers' choices.
    Brake system
    ABS system
    Accessories
    Tool box(Box only without the tool)
    Spare wheel holder(no spare tires and wheels)
    Outrigger
    JOSTZ20


    Features:


    1,Steel construction:All chassis adopts the high-tensile steel


    2,Running system:Axles and suspensions system are complied with International Standards;


    3,Brake system:Adopt the International brands;


    4,Electric system:China famous brands;


    5,Painting:zinc-rich primer and modified urethane topcoat as customers' choices


    6,Harness: We adopt the rubber Wiring harness. Its advantages include waterproof, dustproof, anti-aging, safety more,etc.Specially there are some high intension clamps to fix the harness.


    7,The side beam is high tensile steel which strengthen more the Cargo platform.


    8,Double air chambers are adopted on all axles in order to brake the trailers safety and quickly.


    9,Lights include the rubber grommets in order to decrease the shaking and extend its using period. Specifications:

    ADVANTAGES

    : Drop side trailer of Shandong Shuyue Vehicle Co., Ltd. is a new light vehicle, Which makes several innovations on the basis of full data analysis on transportation environments in various places, by fererring to foreign and domestic advanced design concepts and by using FEA (finite element analysis)


    Material of web plate and key position uses high strength low alloy steel with domestic advanced technical standard .


    Strong loading capacity: By using high strength steel and structural innovation, it keeps same loading capacity while reducing while reducing tare weight. It is unique in reducing oil consumption and tire wearing aspects.


    Our Services
    We can supply kinds of service to customers according to customers' request:

    1,We Will Check Again Before Sending.


    2,Spare Parts Supply:


    We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.


    FAQ

    Q: I want to transport the truck by container, is it ok?

    A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.


    Q:How about your product quality?

    A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.


    Q:I want to be your agent in my country , is that ok?

    A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.


    Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?

    A: We can make the tyres as your requirement to suit your country's need.
