    Two Axles Terminal Trailer Q345B Material For Transport 20 Foot Container

    Ask Lasest Price
    Brand Name : Star Trailer
    Model Number : TS-020
    Certification : CCC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 300 sets per month
    Delivery Time : 40 days after down payment received
    • Product Details
    • Company Profile

    Two Axles Terminal Trailer Q345B Material For Transport 20 Foot Container

    Two Axles Terminal Trailer Q345B Material For Transport 20 Foot Container
    verview
    Quick Details
    Use:Terminal Trailer Type:Semi-Trailer Material:Q345B
    Certification:CCC Size: Buy's request Brand Name:Star Trailer
    Max Payload:30-200T Place of Origin:Shandong, China (Mainland)
    Function:Transport 20/40ft container and Heavy Duty Equipment
    Axle:13T 14T 16T 18T BPW FUWA Suspension:Mechanical Suspension/Air suspension
    Landing Gear:JOST C200 two speed telescopic manual landing gear Tire:11r20 12r22.5 315 385
    King pin:2"(50mm)or3.5"(90mm) JOST Color:Customers Optional
    Production time:30 workdays
    bility
    Supply Ability:
    300 Set/Sets per Month
    kaging & Delivery
    Packaging Details
    In nude,paiting wax before deliver to port
    1. by container(40ftHQ/40ft FR)
    2. by bulk ship/RORO ship
    rt
    Any port in china

    duct Introduction:

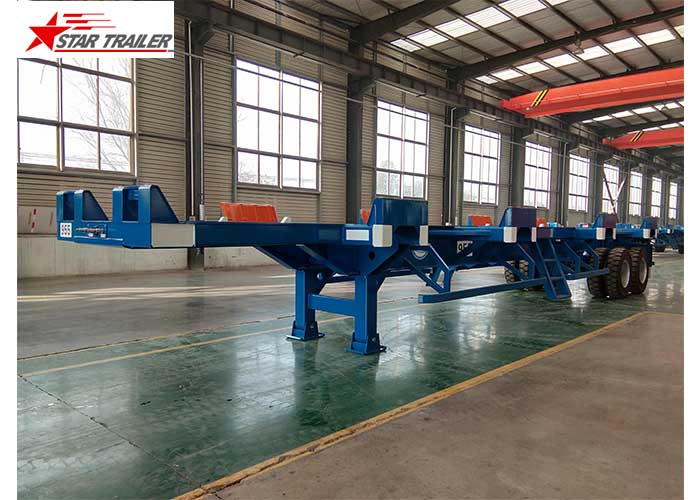

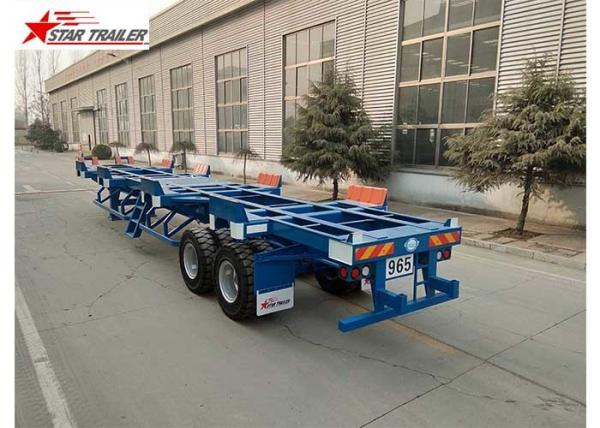

    The terminal trailer is designed and manufactured for transporting lx20’,2x20’,l x40’and lx45’ISO containers within container terminal.
    More charactors of strong semi trailer you will concern :
    1>Strong trailer frame was made from Q345B/Q550/Q690/HG60,The advantages of Q550/Q690/HG60 are high strength, strong bearing capacity and 2-3 times of other materials.
    2>All cross beams are completely reinforced
    3>Heavy duty type suspension:Mechanical, airbag, and rigid suspension to meet your transportation demand.
    4>Strong low bed trailer ramp,leaf spring type,folding hydraulic type optional.
    5> Two pieces spare tire carriers, water tank, fuel tank, etc, are optional accessories which build modern transportation.
    terial:
    High tensile low alloy steel with 550 MPa yield strength is used for fabricating H-beam and 350 MPa steel material for other fabricated parts.
    CIS: CHINA Industrial Standard
    Frame:
    Main Beams: 590 mm x 150 mm . Fabricated H-beam with 16mm x 150 mm. top and bottom flanges, 8mm web.
    Cross Members: 8mm thick x 751mn wide x 400mm height fonned channel.
    Side guide:
    Four side guide block of 900 mm. (L) x 270 mm.(H) of box structure box structure slope inside surfa ce guiding container when loading. There are 50 mm. x 6 mm. rubbing plate on the side guides. Each pair of side guide are supporte d by bolster of a 200mm. x 200 mm. x 10mm. square tube and a 200 mm. x 73mm. channel.
    Rear guide:

    On the rear bolster there are two I40mm.(W) x 110 mm. (H) box type container guide/stopper on top of the
    rear bolster. This guide/stopper will not affect opening of container door on the trailer.
    Stopper:6 gravity stoppers of 100 mm above the top surface of main beam
    Rear bumper: 100mm x 100mm square tube bumper with Heavy-duty vertical steel channel supports.
    Ladder: One ladder at each side at center of the trailer position between two 20’containers .
    Safety side guard rail: 100mm x 50mm rectangular tube, fixed type.
    Landing leg:
    Fixed landing leg with sand shoe.
    Landing leg size: :200x200x10 square tube.
    King pin & Plate:
    10mm thick plate with 8mm thick fabricated“C” channel type king pin support, 2”(50.8mm)diameter bolt on king pin.
    Type: KZ1010 ( JOST ,CHINA)

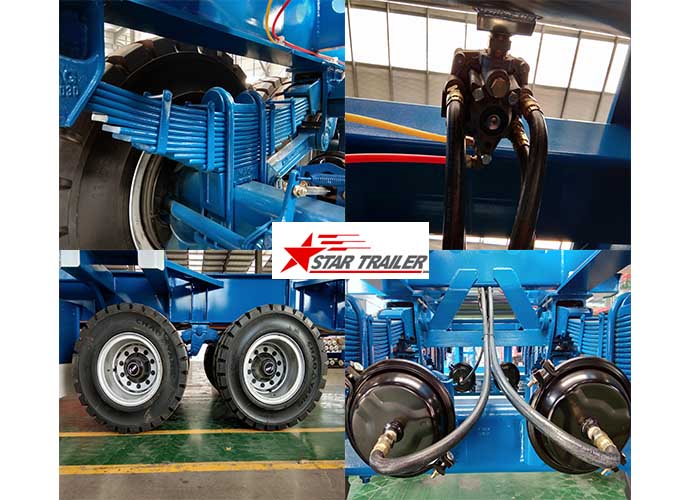

    Suspension:
    Heavy duty tandem suspension with 12 leaf spring. (100 width by 13mm thickness / leaf). Rated capacity is 2 x 16Tons.
    Maker: MAG MC4/S 150-12
    Axles:
    l50x150 square axle. 10 stud ISO (M22xl.5) Manual slack adjuster.
    Type:FUWA, MAX CAP:16000KG/axle@105km/h
    Wheels:
    8.0x 20 Steel disc wheels, ISO 10 holes, PCD 335nun , 280mm center hole.
    Type: sunrise CHINA
    Tires:
    11.00 - 20 Solid rubber tires
    Type: Chaoyang/Double coin/ Trangle tire...
    Brake system:
    Dual line pneumatic service brake system.
    Valve: WABCO RE6 · without ABS
    Brake chamber:T30 service brake chamber on both axle Air coupling: quick coupling type.
    Electrical System:
    12 volt lighting system with 7 way receptacle.
    Brake/tail lamp & turn signal lamp & reverse lamp.


    Coating:
    A brasive blast of all metal surfaces to a SA-2.5 or SSPC-SP-10.
    Surface will be coated wit Zinc-Rich epoxy primer and poly- urethane top coat, TDFT 125µm with five (5) year warranty.
    Maker: Kansai
    Conspicuity Marking:
    Rear end and side rail of trailer have red/white conspicuitytape where applicable.
    Maker: 3M
    Product Details:



    Product Accessories:

    Our customers

    FAQ:

    1.Can I have sample of this type trailer to test the quality?

    Of course yes, my friend and our MOQ is 1 unit.

    2. What's the delivery time and can you lower the price?

    It depends on the quantity. Usually it is within 40 days after the receipt of deposit. And my friend, the moer units ,the lower price..

    3. Can I customize the trailer?

    Yes, the design will be made according to your suggestion.

    4. What's the payment terms?

    30% by T/T as deposite and balance by T/T before delivery.,or by L/C at sight .

    5. How do you ensure its quality?

    There will be a warranty given to you ,to provide you a good after-sade-support.
