2- Axis 40 Foot Flat Deck Semi Trailer Baffle 8 Tires 13T FUWA Axles In Yellow

    Buy cheap 2- Axis 40 Foot Flat Deck Semi Trailer Baffle 8 Tires 13T FUWA Axles In Yellow from wholesalers

    Buy cheap 2- Axis 40 Foot Flat Deck Semi Trailer Baffle 8 Tires 13T FUWA Axles In Yellow from wholesalers
    • Buy cheap 2- Axis 40 Foot Flat Deck Semi Trailer Baffle 8 Tires 13T FUWA Axles In Yellow from wholesalers
    • Buy cheap 2- Axis 40 Foot Flat Deck Semi Trailer Baffle 8 Tires 13T FUWA Axles In Yellow from wholesalers
    • Buy cheap 2- Axis 40 Foot Flat Deck Semi Trailer Baffle 8 Tires 13T FUWA Axles In Yellow from wholesalers
    • Buy cheap 2- Axis 40 Foot Flat Deck Semi Trailer Baffle 8 Tires 13T FUWA Axles In Yellow from wholesalers

    2- Axis 40 Foot Flat Deck Semi Trailer Baffle 8 Tires 13T FUWA Axles In Yellow

    Ask Lasest Price
    Brand Name : Startrailer
    Model Number : FT2-001
    Certification : CCC、ISO
    Price : USD $13000~$15000
    Payment Terms : L/C, T/T
    Supply Ability : 200 units per month
    Delivery Time : 30 days after receives deposite
    MOQ : 2 units
    • Product Details
    • Company Profile

    2- Axis 40 Foot Flat Deck Semi Trailer Baffle 8 Tires 13T FUWA Axles In Yellow

    2- Axis 40 Foot Flat Deck Semi Trailer Baffle 8 Tires 13T FUWA Axles In Yellow
    Overview
    Quick Details

    Use:Truck Trailer Type:Semi-Trailer, flatbed chassis

    Material:Steel Certification:CCC ISO WMI

    Size:12500*2500*1550mm OEM No.:SCD9400P

    Max Payload:40T;20T Place of Origin:Shandong, China (Mainland)

    Brand Name:Startrailer Flatbed Container Trailer

    Product name:Three Axle 40FT 12 Tires White Flat Bed Semi-Trailer With Twist Locks

    Capacity:40T;20T Axle:13 Ton Fuwa Brand

    Suspension:Mechanical Suspension Function:Transport 20ft 40ft Container

    Tire:12R22.5 King pin:2"(50mm)or3.5"(90mm) JOST

    Landing Gear:JOST E100 Container Lock:12pcs

    Supply Ability

    Supply Ability:

    200 Unit/Units per Month

    Packaging & Delivery

    Packaging Details

    Nude
    Chinese Factory Tri-axle 40FT Container Trailer 40ft flatbed Trailers

    Port

    Any port of China

    T2-Axis 40-Foot Baffle 8 Tires 13T FUWA Axles Yellow Flat Bed Semi-Trailer


    Specification:


    20ft Flatbed Trailer with two-axle


    The flat top trailer is designed for use in stevedoring and transporting of 1x20ft ISO cargo containers or loose cargo.


    Dimension:

    Length: 7,200 mm±10mm (approximate)

    Width: 2,490 mm ±10mm (including mud guard)

    Height: 1,476mm @ unload (without twist locks)

    King Pin Location: 450 mm from the front face of the front bolster (No confirm).

    Axle spacer: 4610mm + 1310mm

    Fifth Wheel Height: 1,230mm with the chassis level (No confirm).

    Landing Gear location: 2,200mm behind the king pin location (No confirm).

    (The above dimension will be adjusted according to the tractor specification.)


    Weight:

    Tare Weight: approximate 6,000 kg Max. Payload: 30,000 kg GVWR: 36,000 kg


    OEM Parts Configuration:

    King Pin: 2” welding kingpin, supplier & type: JOST KW1010.

    Twist Locks: Twelve (4) retractable ISO type twist locks.

    Landing Gear: 2 speed road side winding with sand shoe Type: JOST/Eagle-Z20TT

    Suspension: Mechanical suspension with 7 pieces leaf springs

    Axles: Square axle with 13 tons capacity which is FUWA Brand, Made in China.

    Rims: 8.25-22.5, 10 Holes ISO, 8+1 pieces.

    Tires: 12R22.5, Radial Tires, 8+1 pieces; China Famous Brand.

    Brake System: Dual air brake system, 2*40 Liters Air Pressure Tanks; WABCO relay emergency valve, none ABS brake system.

    Brake Chamber: 30/30 type on rear two axles, 30 type on front axle

    Electrical System: Complete 24V installation with modular wiring harness.


    Accessories:

    Spare Tire Carrier: Equipped one set per chassis with one set spare tire.

    Side Guard: Steel Side Protection.

    Tool Box: Equipped one set.

    Marking: Qingdao CIMC Special Vehicle Co., Ltd. standard, Technical data plate including chassis no, dead weight, year of manufacturing etc. to be fitted

    Painting: Color by customer’s requirement.


    Note:

    1) All the details not mentioned above should comply with Chinese regulations.

    2) These specifications are given as information. CIMC reserves its right to change them without previous notice.

    3)above quotation based on RMB 6.60 to USD 1.00. If any changes before the units been delivered or dispatched, we reserve the right to claim for the exchange rate losses in between. (This drawing is only for reference)


    Our customers

    With the harmonized team work of the management and staff member, we have successfully developed international customer base such as Singapore, South Korea, Australia, New Zealand, Russia, . . . . and established long-term cooperative relations.



    Factory environment

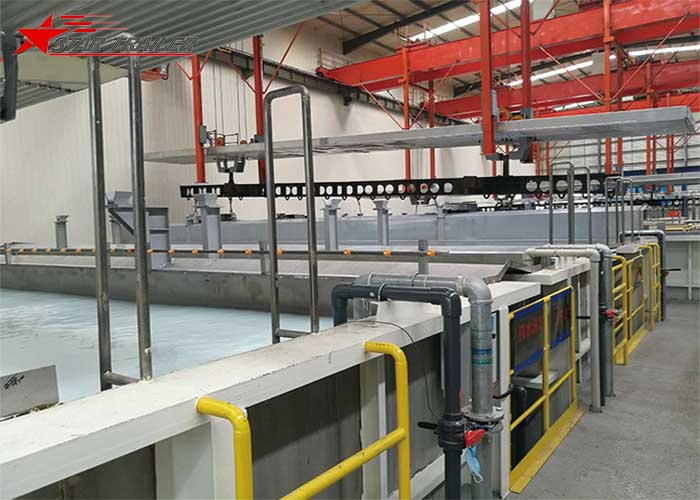

    Steel plate unwinding equipment Primer electrophoresis process
