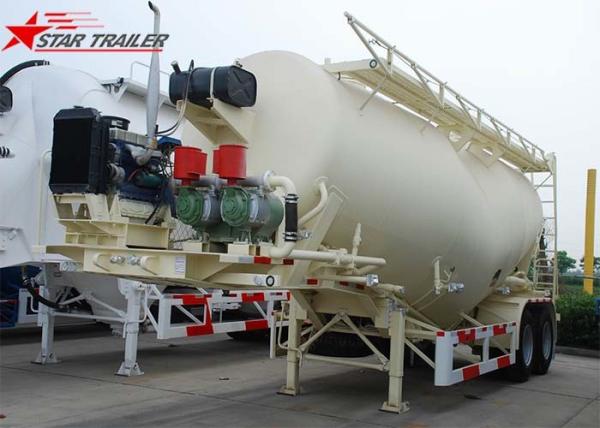

    White Three Axles Carbon Steel Dry Bulk Truck Carriers Max Payload 80 Tons

    Ask Lasest Price
    Brand Name : Startrailer
    Model Number : CM-004
    Certification : ISO、CCC
    Price : USD18000-USD9000
    Payment Terms : T/T
    Supply Ability : 50 units per month
    Delivery Time : 39 days after receive payments
    • Product Details
    • Company Profile

    White Three Axles Carbon Steel Dry Bulk Truck Carriers Max Payload 80 Tons


    White Three Axles Carbon Steel Dry Bulk Truck Carriers Max Payload 80 Tons


    Whatsapp: https://api.whatsapp.com/send?phone=8613864856071

    YOUTUBE: https://www.youtube.com/user/BenjaminDuBin


    Cement tanker refers to the special tank truck that transports bulk powder, such as cement, fly ash, stone powder, aluminium powder, etc. Among them, the bulk cement tank is the largest. The use of bulk transportation can improve transportation efficiency, save transportation costs, reduce environmental pollution during transportation and use, reduce production costs, and at the same time enable mechanization of loading, unloading and storage.


    Overview
    Quick Details

    Purpose: Logistics between cities Type: Semi-Trailer

    Material: Carbon Steel Certification: ISO CCC

    Size: 12000*2500*3900mm Max Payload: 80T

    Place of Origin: Shandong Province, China Brand: Startrailer

    Utility hole cover:500mm, 1piece Axle:13T Axle FUWA/BPW Brand

    Landing Gear: Standard 28 ton, JOST optional Tire:12R22.5 /11.00R20

    Brake System: Dual line pneumatic service brake system.


    Three-Axle Air Discharge Tanker For Carrying Dry Bulk Cement Tank Semi Trailer

    Specifications:

    Type: Air Discharge Tanker For Carrying Cement

    DIMENSION:

    Overall Length: 11,035mm

    Overall Width: 2,500mm

    Overall Height: 3,830mm

    King Pin Setting: 1,515 mm

    King Pin Plate Height: 1, 300 mm

    King Pin to Landing gear: 2,550 mm

    Wheel Span: 7,110 mm

    Axle Spacing: 1,300 mm


    TANK:

    Tank Volume: 30,000L

    Tank material: 4mm thickness SM490A

    Dished Ends: 5mm thickness SM490A

    Pipe material: Carbon steel

    Discharging Hose Diameter: 4 inch

    Discharging valve: 4” butterfly valve

    Releasing Hose Length: 5,000mm

    Hose quick coupling: 4” JG/T5021-93 (Chinese standard)

    MAX. Horizontal Discharging Distance: 5,000mm

    MAX. Vertical Discharging Distance: 15,000mm

    Working pressure: 2 bar

    Diesel engine: YANGZHOU 495GI

    Air Compressor: WB-7/2


    RUNNING GEAR:

    Suspension: Undermount tandem suspension with equaliser,8-Leaf Spring.

    Axle: Square axle, 13,000 kg capacity. (TSU13010)

    Brake: Dual lines pneumatic brake system.

    Parking Brake: Type 30/30 spring brake system on all axles.

    Wheel: 10 holes steel Disc wheel.

    Tire: 11.00x20 16 ply rating ,9 pcs (including one spare tire)

    Kingpin: 2”.


    LANDING LEG: (TSU CL25TA).

    Two-speed manual operation type with the sandshoe.


    ELECTRICAL:

    Voltage: 24 Volt.

    Receptacle: 7 way

    Light: Front marker lamp: white

    Side marker lamp: white and red

    Rear lamp: red

    Turn signal lamp: amber


    STRUCTURAL WEIGHT RATING:

    Tare Weight : 10,000kg

    Payload : 23,300kg

    G.V.W.R.: 33,300kg

    King Pin Weight : 15,300kg

    Axle Weight: 18,000kg



    Drawing

    We have 20 years experience of engineering management in cement semi trailer operation, our engineer has designed and built trailers for container terminals in Rotterdam, Felixstowe, Russia, Egypt, Singapore, Indonesia, Pakistan, South Korea, ……. covering 23 countries and regions.
